Bluesun 5.5KW Off-Grid Hybrid Solar Inverter with High Efficiency

The Bluesun 5.5KW off-grid hybrid solar inverter is designed to deliver stable and efficient power conversion for independent solar energy systems. Combining off-grid functionality with hybrid energy management, it supports solar panels, battery storage, and grid or generator input to ensure continuous and reliable power supply. Featuring high conversion efficiency, intelligent energy control, and wide battery compatibility, this inverter is suitable for residential homes, remote areas, and small commercial applications. Its compact design, advanced protection features, and user-friendly monitoring interface make installation and operation simple while maximizing system performance and long-term reliability.

Inquiry Now Datasheet

All-in-one Solar Charge Inverter

5500W Off-Grid Solar Inverter, 100A MPPT Built in, 500VDC PV Input 220VAC 48V. This advanced multi-functional inverter/charger combines an inverter, solar charger, and battery charger in a compact design, ensuring reliable and uninterrupted power supply. Equipped with a user-friendly LCD display, it offers easy access to customizable settings, including:

*Stable sine wave AC output via SPWM modulation
*Supports a wide range of battery technology: GEL, AGM, Flooded, LFP, and program
*up to 99.9% MPPT capture efficiency
*Supports up to 6 devices of the same model connected in parallel

Performance Characteristics

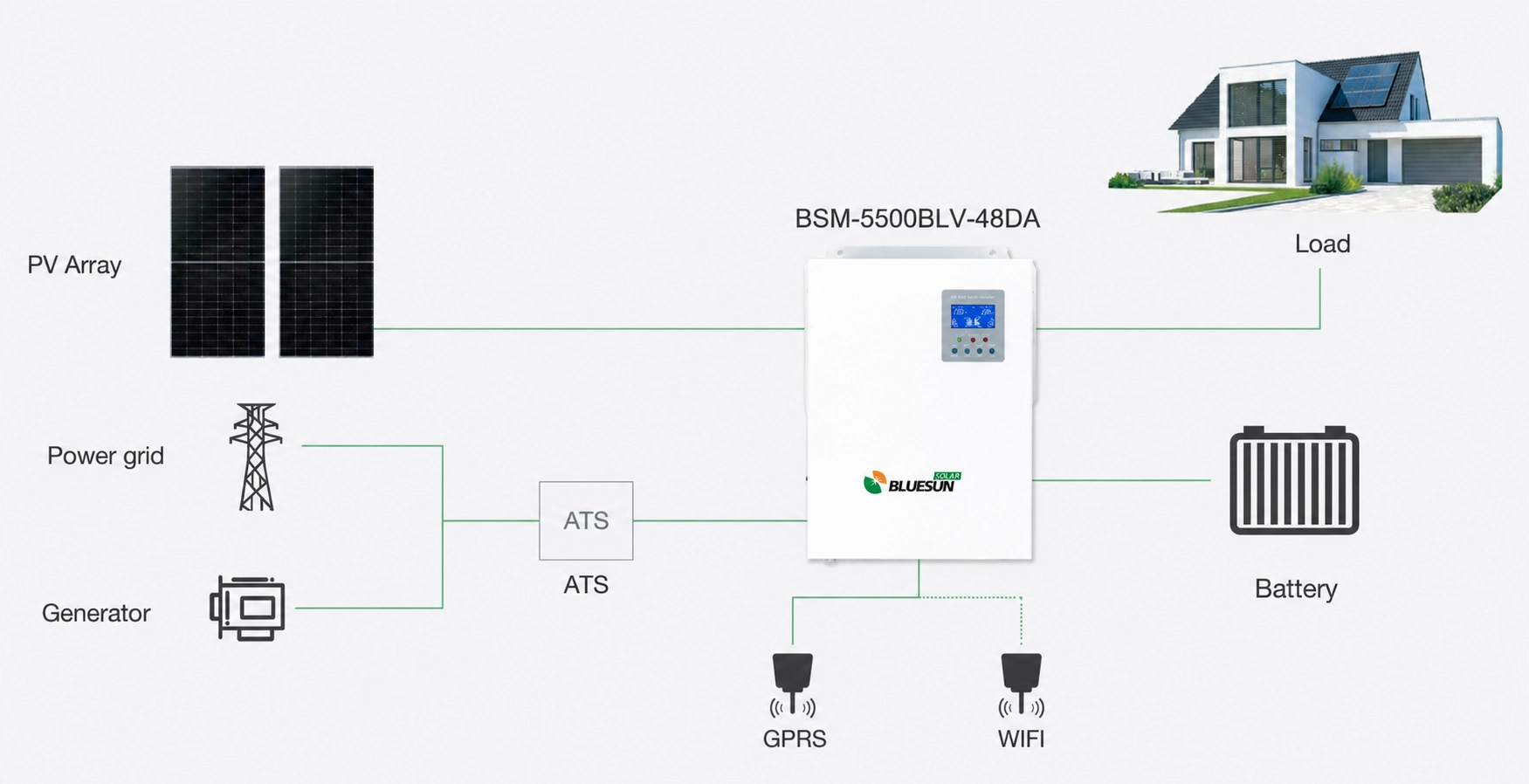

System Diagram

Bluesun 5.5KW Off-Grid Hybrid Solar Inverter with High Efficiency

Basic Parameters

Battery Input
- Battery type Sealed、FLood、GEL、LFP、Ternary
- Rated Battery Input Voltage 48V ( Minimum Startup Voltage 44V)
- Hybrid Charging Max Current 80A
- Battery Voltage Range 40Vdc~60Vdc ± 0.6Vdc
Solar Input
- Max PV Open-circuit Voltage 500Vdc
- PV Working Voltage Range 120-500Vdc
- MPPT Voltage Range 120-450Vdc
- Maximum PV Input Current 22A
- Maximum PV Input Power 6000W
- Maximum PV Charging Current 80A
AC Input（generator/grid）
- Mains Maximum Charging Current 60A
- Rated Input Voltage 220/230Vac
- Frequency 50Hz/ 60Hz (Automatic Detection)
- Mains Charging Efficiency >95%
- Switch Time (bypass and inverter) 10ms(Typical Value)
- Max Bypass Overload Current 40A
AC Output
- Output Voltage Waveform Pure Sine Wave
- Rated Output Voltage (Vac) 230Vac
- Rated Output Power (VA) 5500W
- Rated Output Power(W) 5500W
- On-load Motor Capacity 4HP
- Output Frequency Range(Hz) 50Hz±0.3Hz/60Hz±0.3Hz
- Maximum Efficiency >92%
General
- Number of parallel/split phases 1-6PCS
- Working Temperature Range -10°C ~ 55°C
- Storage Temperature Range -25°C ~ 60°C
- Humidity Range 5% to 95%(Conformal Coating Protection)
- Dimensions 426*322*124mm
- Weight (KG) 10.5
