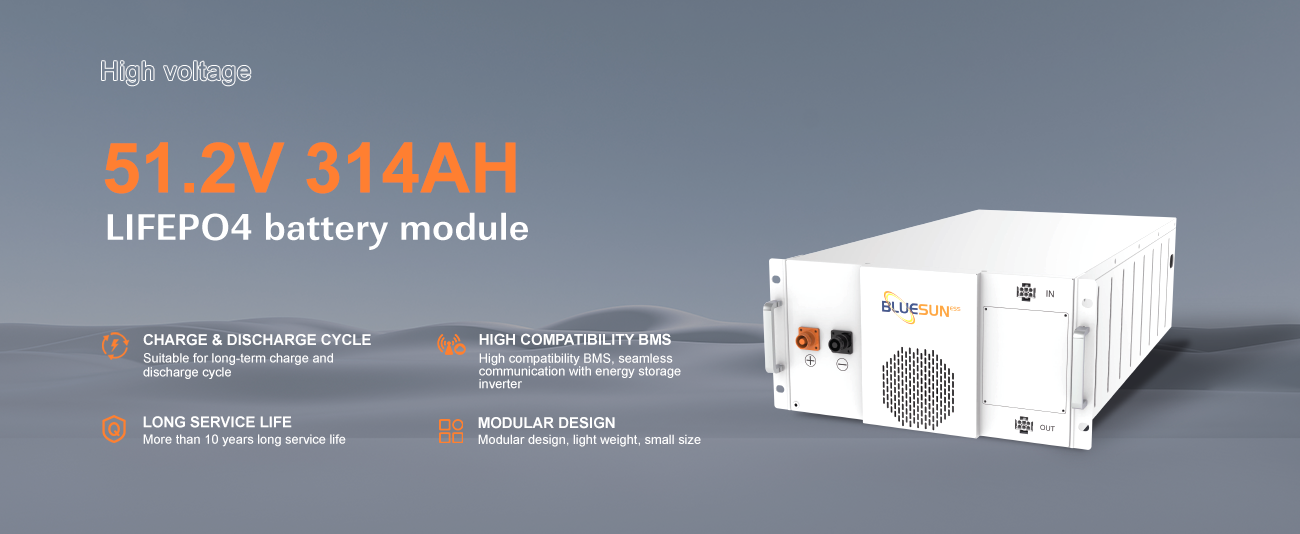

51.2V 314ah High Voltage Lithium Battery Module
BSM48314H has 3 levels BMS (battery management system), which can manage and monitor cells information including voltage, current and temperature.
Brand:BSM48314 Unit
Capacity (kWh):16.076
Depth of Discharge:90%
Dimension(W* D* H,mm):895*500*235
Cycle Life:> 6000 (25°C)
Communication:CANBUS/ModbusRTU/TCP/IP
Certification:CE/IEC/UL/UN38.3/MSDS

Introduction

BSM48314H is a high-voltage lithium iron phosphate battery storage system from BLUESUN, designed for high-power applications with limited space, load restrictions, and long cycle life requirements, providing reliable and stable energy storage.

Product Property

The BSM48314H energy storage product utilizes lithium iron phosphate (LiFePO4) cells, known for their safety, long cycle life, and eco-friendliness. Key features include:

3-Level BMS Protection: Equipped with a three-level Battery Management System (BMS) for comprehensive monitoring and management of cell voltage, current, and temperature.

Cell Balancing Function: Automatically balances charging and discharging among cells to optimize performance and extend battery cycle life.

Scalable Design: Supports multiple units connected in series to expand capacity and power output, meeting larger energy storage and longer backup needs.

Product Specification

51.2V 314ah High Voltage Lithium Battery Module
BASIC PARAMETERS
  • BSM48314 Unit
    • Cell Technology Li-ion(LFP)
    • Battery Module Capacity (KWH) 16.076
    • Battery Module Voltage (Vdc) 51.2
    • Battery Cell Capacity (AH) 314
    • Quantity in Series and Parallel 16S1P
    • Efficiency 98%
    • Depth of Discharge 90%
    • Dimension(W*D*H,mm) 895*500*235
    • Communication CANBUS/ModbusRTU/TCP/IP
    • Protection Class IP22
    • Operation Cycle Life >6000 (25°C)
    • Operation Life 10+ years(25°C)
