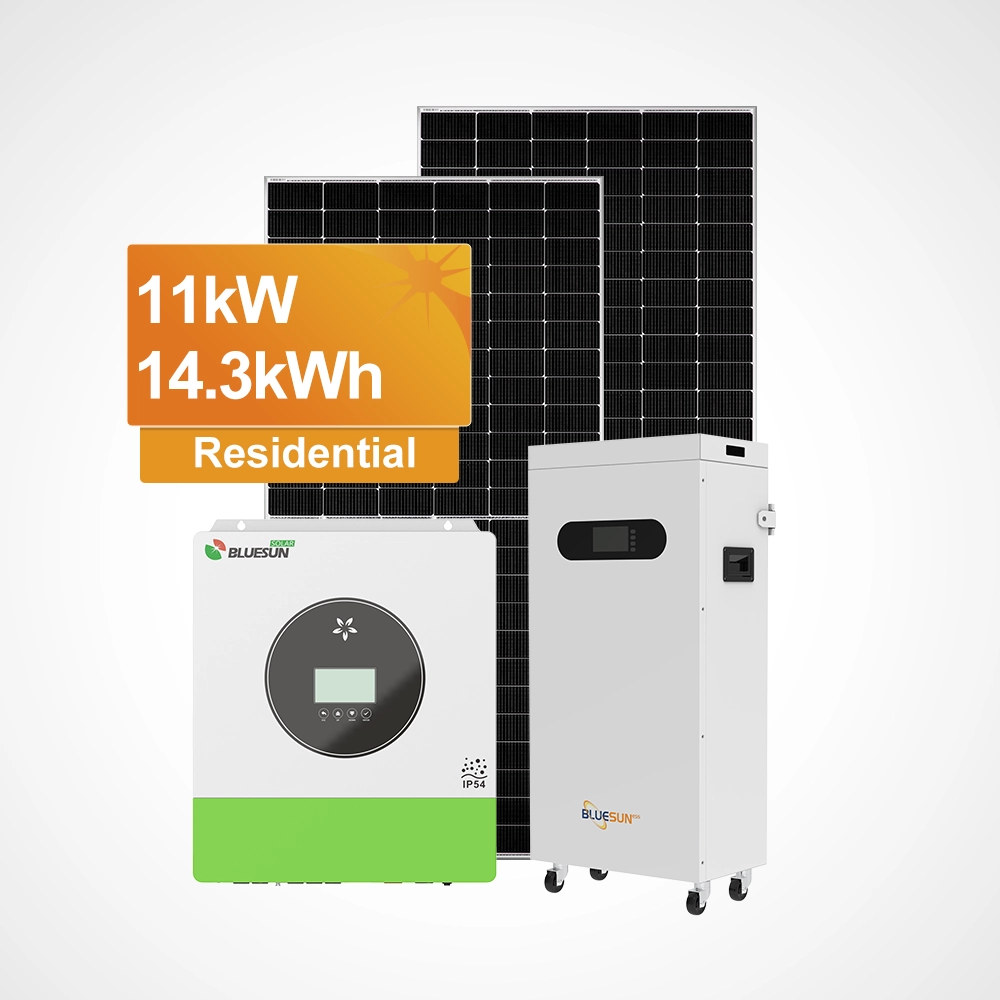

The Solar Power System With Battery is a sustainable and intelligent energy storage solution designed to enhance energy efficiency for households. By integrating advanced storage capabilities, this system allows homeowners to optimize energy consumption while reducing reliance on the grid.
With Bluesun’s strong R&D expertise and technical reserves, this system offers exceptional scalability, providing a storage capacity range from 5kWh to 60kWh of usable energy to meet diverse energy needs. The Solar Power System With Battery empowers households with a reliable and eco-friendly way to manage energy, ensuring a smarter, more sustainable future.
| Item | Model | Description | Quantity |
| 1 | Solar Panel | Half cut mono Black frame 425w solar panel | 12 pcs |
| 2 | Combiner Box | Optional | 1 pc |
| 3 | Gel Battery or Lead Acid Battery | 25.6V 208Ah battery | 2 pcs |
| 4 | Offgrid Inverter | 5.5kva | 1pc |
| 5 | Mounting Support | Roof/Ground | 1 set |
| 6 | Cable | 4mm² PV cable | 100m |
| 7 | Connector | Solar Connector | 8 pairs |
| 8 | Tools Bag | Solar Installation tools | 1 set |
♦Utilizing MBB half-cell technology
♦Maximum Power Voltage: 42.51V
♦Maximum Power Current: 13.41A
♦Open Circuit Voltage: 50.2V
♦Short Circuit Current: 14.34A
♦Dimensions: 2278×1134×35mm
♦Weight: 28.6kg
♦Stable sine wave AC output via SPWM modulation
♦Supports a wide range of battery technology: GEL, AGM, Flooded, LFP, and program
♦up to 99.9% MPPT capture efficiency
♦Supports up to 6 devices of the same model connected in parallel
♦lithium batteries
♦Modular design, light weight, small size
♦Suitable for long-term charge and discharge cycle
♦High compatibility BMS, seamless communication with energy storage inverter
♦Residential Roof(Pitched Roof)
♦Commercial Roof(Flat roof&workshop roof)
♦Ground Solar Mounting system
♦Vertical wall solar mounting system
♦All aluminum structure solar mounting system
♦Car parking solar mounting system
