The 3.5kW Solar Power Home System with 5kWh Battery is an all-in-one residential energy solution combining solar generation, energy storage, and intelligent power management. It ensures stable electricity supply for daily household needs while reducing reliance on the grid.
| Type: | Off-grid |
| Max.Power: | 3.5KW |
| Output voltage: | 220/230V |
| Certificate: | TUV, ETL, ISO, CE |
| Warranty: | 25 years |
The Solar Power System With Battery is a sustainable and intelligent energy storage solution designed to enhance energy efficiency for households. By integrating advanced storage capabilities, this system allows homeowners to optimize energy consumption while reducing reliance on the grid.
With Bluesun’s strong R&D expertise and technical reserves, this system offers exceptional scalability, providing a storage capacity range from 5kWh to 60kWh of usable energy to meet diverse energy needs. The Solar Power System With Battery empowers households with a reliable and eco-friendly way to manage energy, ensuring a smarter, more sustainable future.
| Item | Model | Description | Quantity |
| 1 | Solar Panel | Half cut mono PERC 570W solar panel | 6 pcs |
| 2 | Combiner Box | Optional | 1 pc |
| 3 | Gel Battery or Lead Acid Battery | 25.6V 208Ah battery | 1 pcs |
| 4 | Offgrid Inverter | 5.5kva | 1pc |
| 5 | Mounting Support | Roof/Ground | 1 set |
| 6 | Cable | 4mm² PV cable | 100m |
| 7 | Connector | Solar Connector | 4 pairs |
| 8 | Tools Bag | Solar Installation tools | 1 set |
♦Utilizing MBB half-cell technology
♦Maximum Power Voltage: 42.51V
♦Maximum Power Current: 13.41A
♦Open Circuit Voltage: 50.2V
♦Short Circuit Current: 14.34A
♦Dimensions: 2278×1134×35mm
♦Weight: 28.6kg

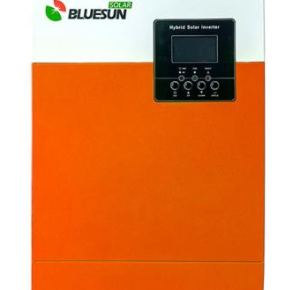

♦Stable sine wave AC output via SPWM modulation
♦Supports a wide range of battery technology: GEL, AGM, Flooded, LFP, and program
♦up to 99.9% MPPT capture efficiency
♦Supports up to 6 devices of the same model connected in parallel
♦Protects against over-discharge, over-charge, over-current, and abnormal temperatures
♦Integrated inspection module ensures efficient monitoring and operation
♦Performs well in temperatures from -20℃ to +55℃ with excellent discharge efficiency
♦Standard 19-inch embedded design allows easy installation and maintenance
♦Residential Roof(Pitched Roof)
♦Commercial Roof(Flat roof&workshop roof)
♦Ground Solar Mounting system
♦Vertical wall solar mounting system
♦All aluminum structure solar mounting system
♦Car parking solar mounting system
