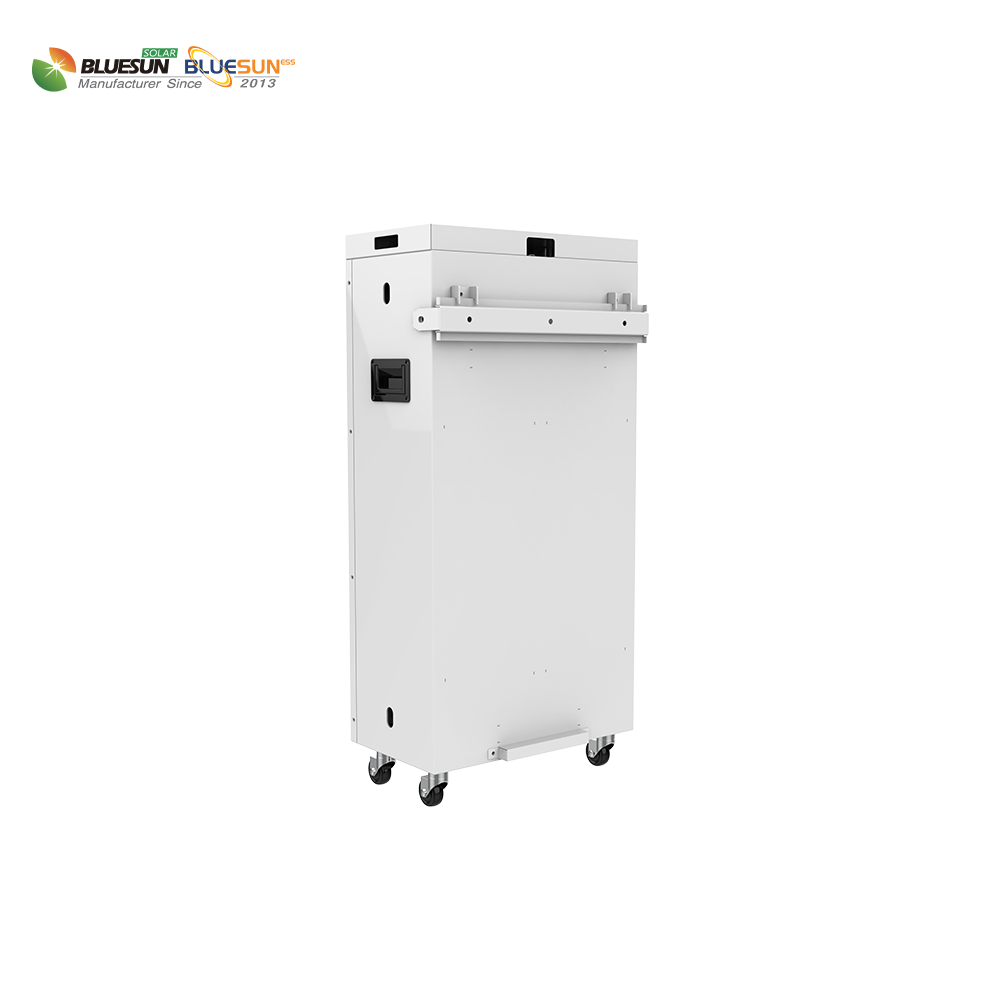

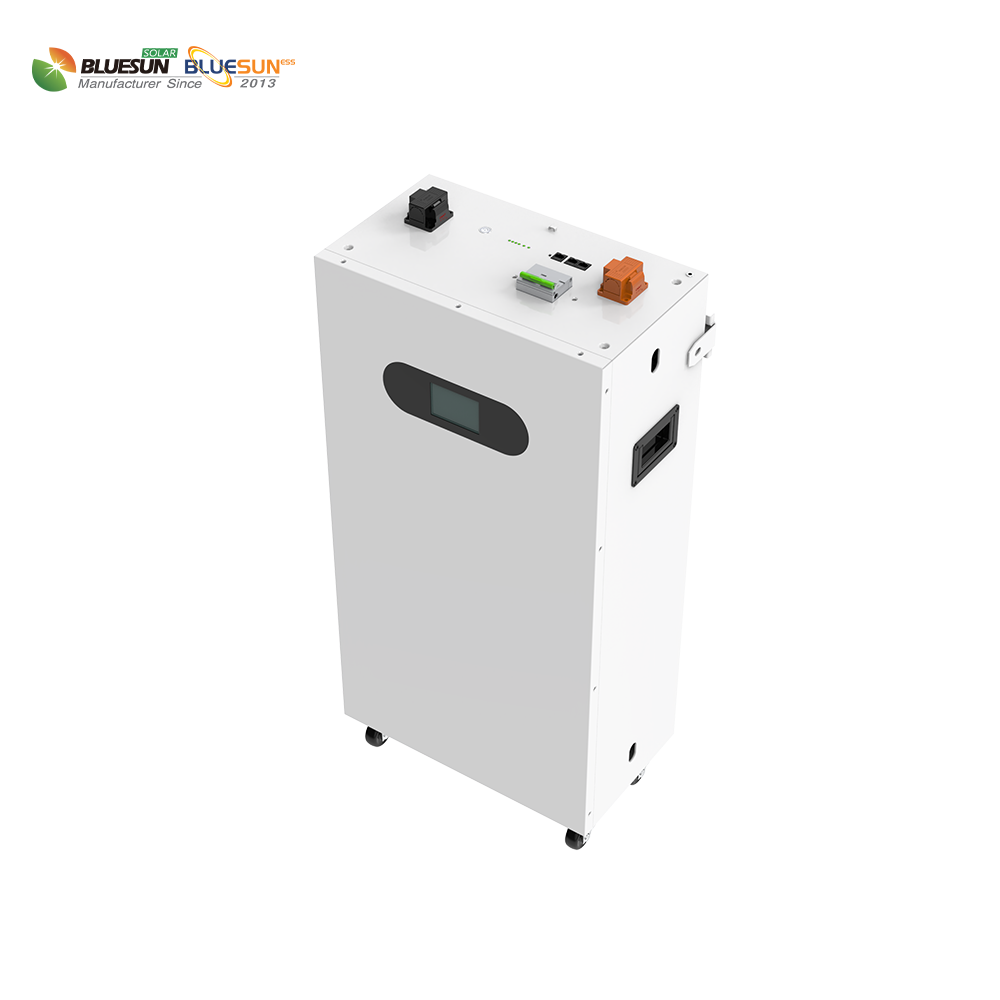

Vertical Low Voltage 51.2V 314Ah Lithium Battery
Designed for multi-module installation, this battery features high compatibility BSM, ensuring seamless integration with leading inverter brands for reliable and efficient energy storage.
Brand:BSM48314W
Battery Type:Lithium Battery
Nominal Capacity:16.076Kwh
Nominal Voltage:51.2V
Certification:CE/IEC/UL/UN38.3/MSDS
Design Life:10+ Years (25°C/77F)
Cycle Life:>8000

Introduction

The BSM48314W delivers safe, reliable, and stable energy for a wide range of equipment. This module supports both capacity and power expansion through multiple parallel connections. It is compatible with CAN, RS485, and RS232 communication protocols, enabling seamless integration with various PV inverter communication systems.

This lithium battery is designed to support multi-module installation, offering outstanding scalability and flexibility for various energy storage needs. With its high compatibility BSM (Battery System Management), it seamlessly integrates with leading inverter brands, ensuring reliable performance and optimal efficiency. The robust design and advanced technology make it an ideal solution for residential, commercial, and industrial applications where stable and efficient energy storage is required.

  • * Tailor-made Cabine: Suitable for mulit-module installtion
    * Easy to Install: Plug and play
    * Larger Capacity: More energy for long time use
    * High Safety: LFP&smart BMS
    * Wide Compatibility: Matching with leading inverter brands
    * Wide Temperature Range: Range of -20~50℃

Product Specification

Vertical Low Voltage 51.2V 314Ah Lithium Battery
BASIC PARAMETERS
  • BSM48314W
    • Nominal Voltage(V) 51.2
    • Nominal Capacity (AH) 314
    • Usable Capacity (KWH) 16.076
    • Charge Votage (V) 58.4
    • Discharge Votage() 40
    • Battery System Discharge Current(Standard) 157
    • Communicaiton RS485/RS232/CAN
    • Working Temperature 0℃~50℃ Charge -10℃ ~50℃ Discharge
    • Shelf Temperature -20℃~60℃
    • Certification CE/IEC/UL/UN38.3/MSDS
    • Design Life 10 years+
    • Size(mm) 440*944*276
    • Weight(KGS) 120
    • Cycle Life >8000
    • Endosure Protect Level IP32
