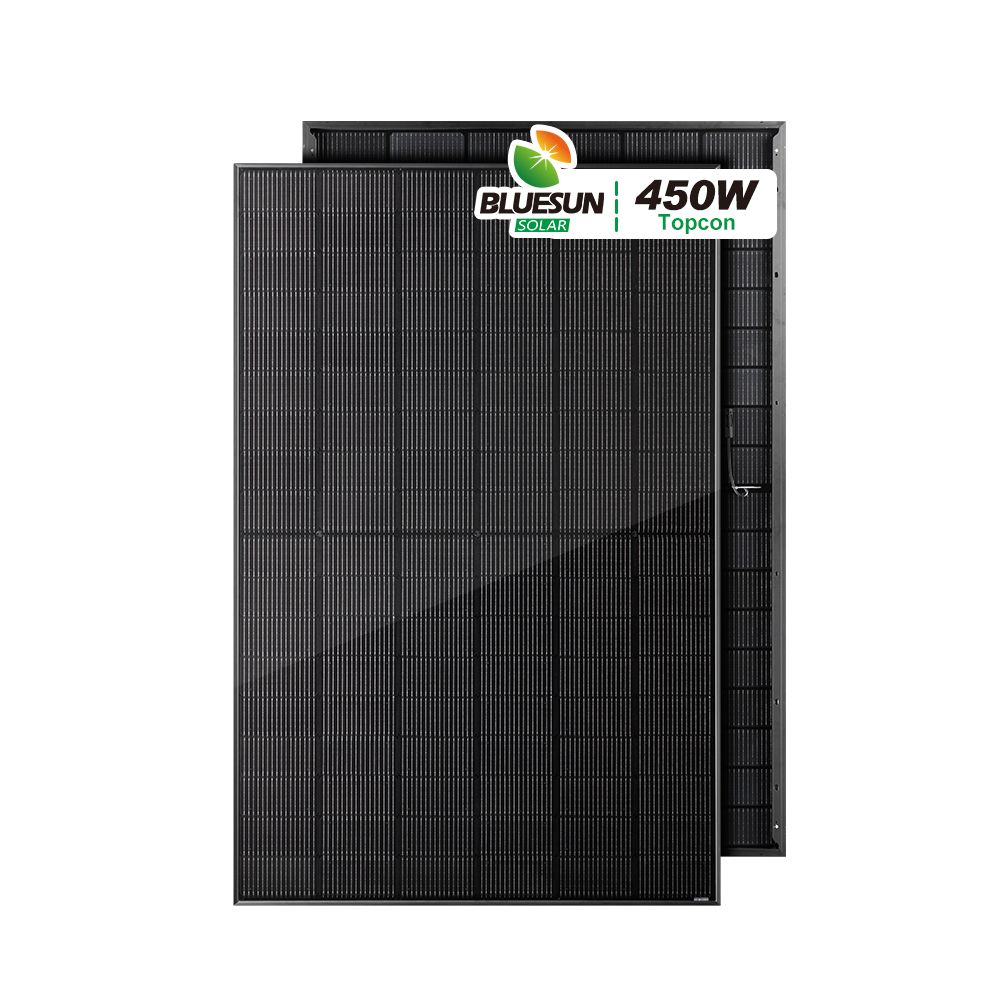

Topcon All Black 450W Solar Panel For Home Commercial Use
With a sleek, all-black design, it enhances the appearance of any roof while delivering exceptional energy efficiency of up to 23.04%.
Model: BSM450M10-54HNH
Solar Cell: N-type Topcon
Number Of Cells: 108 (6*18)
Power Range: 430-450W
Size: 1762*1134*30mm
Certificate: IEC/ CE / TUV
Payment: T/T, L/C,Western Union
Warranty: 30 Years

INTRODUCTION

Bluesun all black 450w Solar Panel

The Topcon All Black 450W Solar Panel for Home Commercial Use offers a perfect blend of aesthetics and performance, making it an ideal choice for residential and commercial solar installations. With a sleek, all-black design, it enhances the appearance of any roof while delivering exceptional energy efficiency of up to 23.04%.

Its 2-square-meter panel size ensures optimal coverage and power generation, maximizing system output even in limited installation spaces. The Topcon All Black 450W Solar Panel combines high-end aesthetics with cutting-edge technology, providing a powerful and visually appealing solar energy solution.

*High module conversion efficiency
MBB half cell technology, module efficiency up to 23.04%

*Withstanding harsh environment
Reliable quality leads to a better sustainability even in harsh environment like desert, farm and coastline

*PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control

*Excellent weak light performance
More power output in weak light condition, such as cloudy, morning and sunset

*Extended wind and snow load tests
Module certified to withstand extreme wind (2400 Pa) and snow loads (5400 Pa)

SPECIFICATIONS
Module TypeBSM425M10-54HNHBSM430M10-54HNHBSM435M10-54HNHBSM440M10-54HNHBSM445M10-54HNHBSM450M10-54HNH
Maximum Power (Pmax/W)STCSTCSTCSTCSTCSTC
425430435440445450
Operating Voltage (Vmp/V)31.6931.8732.0632.2532.4432.63
Operating Current (Imp/A)13.4213.513.5813.6613.7413.82
Open-Circuit Voltage (Voc/V)38.2938.4838.6738.8639.0539.24
Short-Circuit Current (Isc/A)14.1614.2414.3214.414.4814.56
Module Efficiency21.7622.0222.2822.5322.7923.04
STC: Irradiance 1000W/m2,Cell Temperature 25°C, Air Mass AM1.5
, Cell Temperature 25°C, Air Mass AM1.5
