Brushless DC Motor
Direct-current pumping for solar water supply, with model-specific voltage and power ratings.

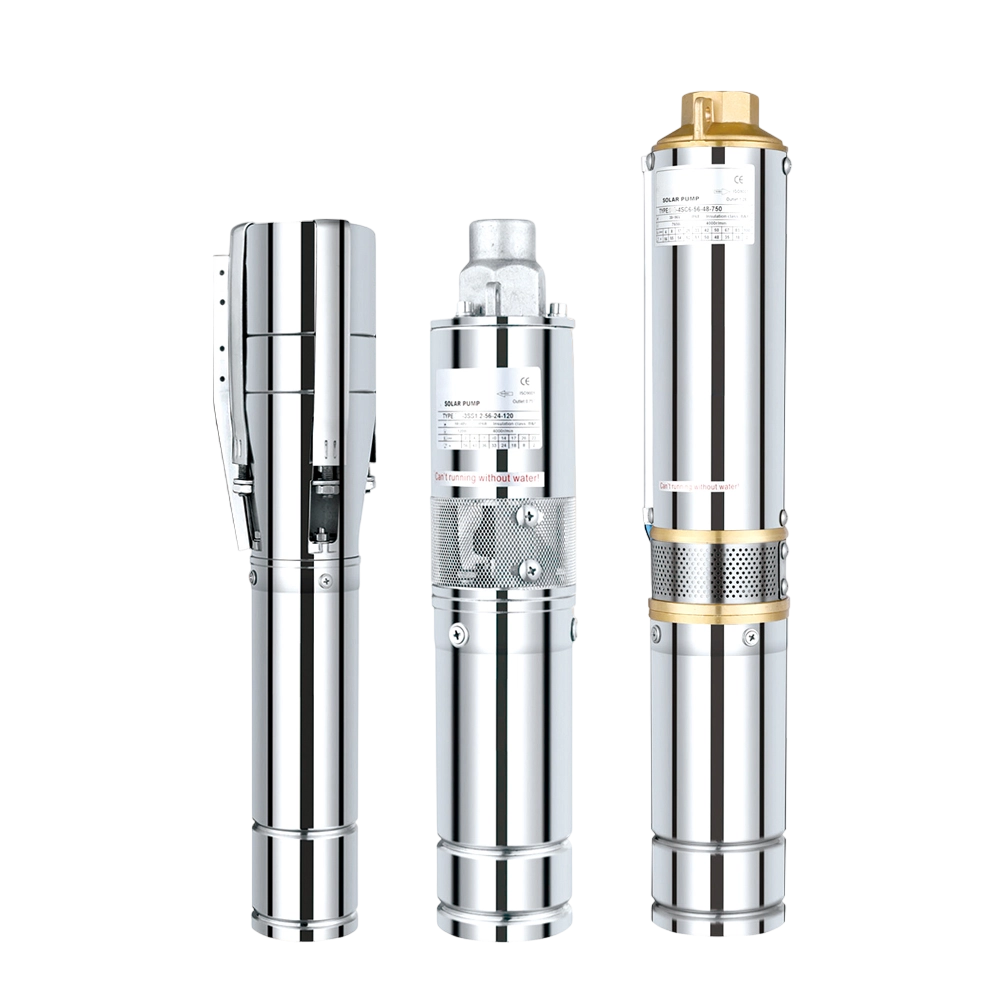

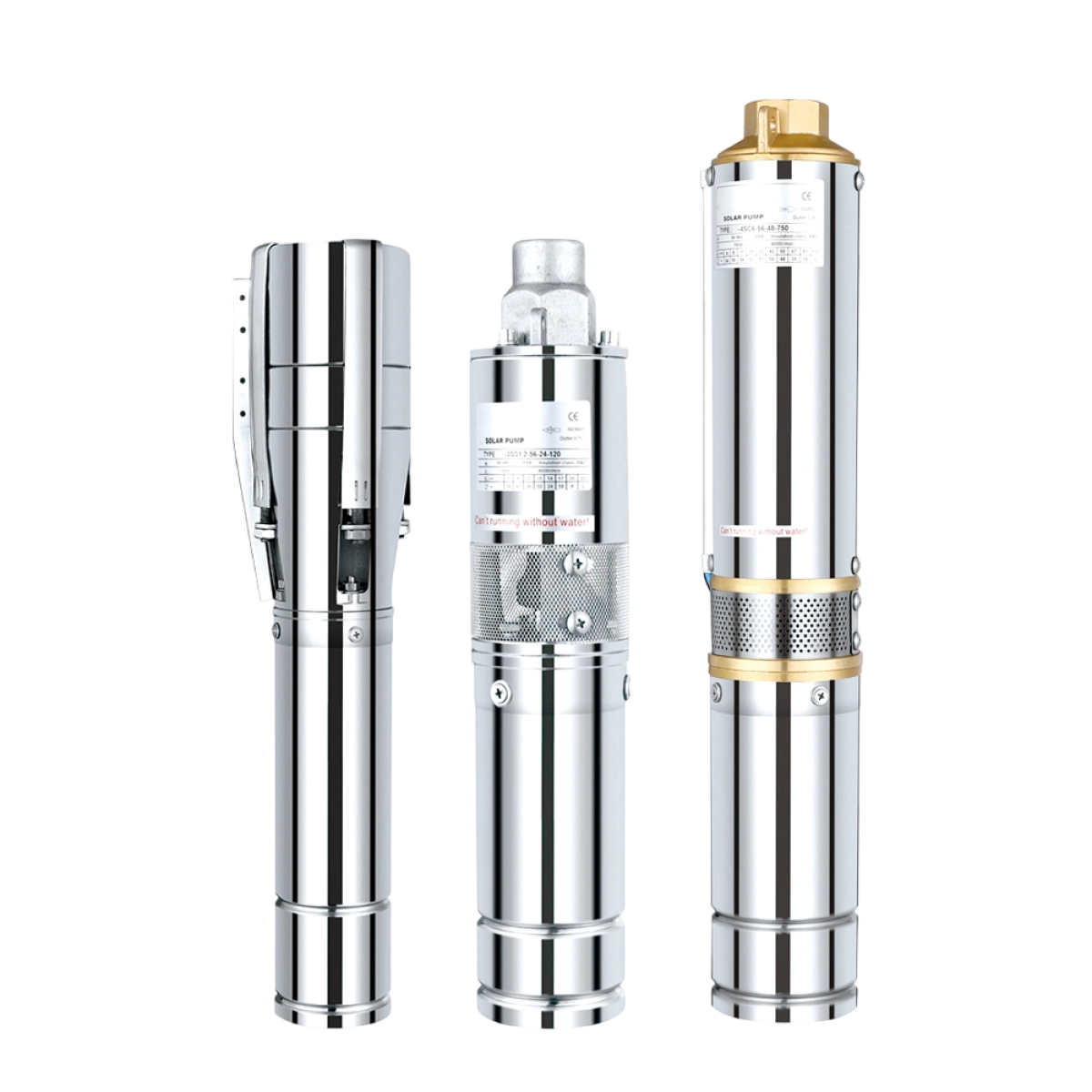

DC Solar Deep Well Pumps for Irrigation & Water Supply
DC Solar Pump Series
Solar-powered submersible pumps with brushless motors and MPPT controllers for agricultural irrigation, livestock watering and household water supply. Choose the model by water demand, total head and well diameter.
0.12–3kWDC pump range24–280VModel-dependent DCMPPTSolar controller
DC solar water pumping
Solar Water Pumping, Matched to Your Well
Solar-powered submersible pumps with brushless motors and MPPT controllers for agricultural irrigation, livestock watering and household water supply. Choose the model by water demand, total head and well diameter.
The DC range includes 2SS/3SS, 2SC, 3SC, 4SC, 3SSC, 4SSC and 4/6SSC families. A matched controller adjusts motor speed to available sunlight. Select a pump from its head–flow curve at the required duty point, then size the PV array and water-storage capacity for the site.
MPPT Control
Tracks available solar power and adjusts pump speed as sunlight changes.
Automatic Protection
Controller protections cover abnormal voltage, overcurrent, phase faults, short circuits, water shortage and high temperature.
Practical Water Supply
Options for deep wells, farm irrigation, livestock and household water storage.
System integration
From Sunlight to Reliable Water Supply
Match the pump, controller and PV array to the hydraulic requirements of the site.
A Matched Solar Pumping Package
PV array · Controller · DC pumpSelect the pump and controller together, then configure solar modules, pipework and water storage for the required flow and head.Solar Array
PV sizing and voltage matching
Pump Selection
Required flow at total head
Water Storage
Tank sized to daily demand
View Pumping Package Scope +
- DC submersible pump · Model-dependent
- Choose family, power, voltage, flow, head and outlet size.
- MPPT controller · Matched to pump
- Controller rating and protections must match the selected DC motor and PV string.
- Solar modules · Site-specific
- Catalog recommends PV power of at least 1.3 times pump power, subject to voltage limits.
- Installation accessories · Project-specific
- Pipework, cable extensions, mounting, sensors and water tank according to site requirements.
Pump selection
DC Pump Model Selection
Representative models from each DC family. Maximum flow and maximum head are separate limits, not a simultaneous operating point. See the catalog for all models and performance curves.
| Model | Power kW | DC V | Max. flow m³/h | Max. head m | Outlet inch | PV reference |
|---|---|---|---|---|---|---|
| 2SS1.2-56-24-120 | 0.12 | 24 | 1.2 | 56 | 0.75 | 1 × 580W |
| 2SS1.7-100-48-500 | 0.5 | 48 | 1.7 | 100 | 0.75 | 2 × 580W |
| 3SS1.2-56-24-120 | 0.12 | 24 | 1.2 | 56 | 0.75 | 1 × 580W |
| 3SS2.0-150-72-750 | 0.75 | 72 | 2 | 150 | 0.75 | 2 × 580W |
| 2SC1.7-52-24-300 | 0.3 | 24 | 1.7 | 52 | 0.75 | 1 × 580W |
| 2SC2.2-55-48-400 | 0.4 | 48 | 2.2 | 55 | 0.75 | 2 × 580W |
PV quantities are catalog references using 580W modules. Final array design must meet the selected controller’s electrical limits. Flow and head must be checked together on the performance curve.
| Model | Power kW | DC V | Max. flow m³/h | Max. head m | Outlet inch | PV reference |
|---|---|---|---|---|---|---|
| 3SC2-53-24-300 | 0.3 | 24 | 2 | 53 | 1.25 | 1 × 580W |
| 3SC3.8-95-48-750 | 0.75 | 48 | 3.8 | 95 | 1.25 | 2 × 580W |
| 3SC6-125-110-1500 | 1.5 | 110 | 6 | 125 | 1.25 / 1.5 | 4 × 580W |
| 3SC3.5-300-220-2200-HV | 2.2 | 220 | 3.5 | 300 | 1.25 | 6 × 580W |
| 3SSC4.5-35-24-300 | 0.3 | 24 | 4.5 | 35 | 1.25 | 1 × 580W |
| 3SSC6-60-48-750 | 0.75 | 48 | 6 | 60 | 1.25 | 2 × 580W |
| 3SSC5-135-110-1500 | 1.5 | 110 | 5 | 135 | 1.25 | 4 × 580W |
PV quantities are catalog references using 580W modules. Final array design must meet the selected controller’s electrical limits. Flow and head must be checked together on the performance curve.
| Model | Power kW | DC V | Max. flow m³/h | Max. head m | Outlet inch | PV reference |
|---|---|---|---|---|---|---|
| 4SC20-48-110-1500 | 1.5 | 110 | 20 | 48 | 2 | 4 × 580W |
| 4SC30-50-220-2200-HV | 2.2 | 220 | 30 | 50 | 2 | 6 × 580W |
| 4SC41-52-280-3000-HV | 3 | 280 | 41 | 52 | 3 | 7 × 580W |
| 4SSC4-75-48-600 | 0.6 | 48 | 4 | 75 | 1.25 | 2 × 580W |
| 4SSC4-303-220-2200-HV | 2.2 | 220 | 4 | 303 | 1.25 | 6 × 580W |
| 4SSC16-70-110-1500 | 1.5 | 110 | 16 | 70 | 2 | 4 × 580W |
| 4SSC30-50-280-3000-HV | 3 | 280 | 30 | 50 | 2 | 7 × 580W |
PV quantities are catalog references using 580W modules. Final array design must meet the selected controller’s electrical limits. Flow and head must be checked together on the performance curve.
| Model | Power kW | DC V | Max. flow m³/h | Max. head m | Outlet inch | PV reference |
|---|---|---|---|---|---|---|
| 4/6SSC26-18-110-1100 | 1.1 | 110 | 26 | 18 | 3 | 3 × 580W |
| 4/6SSC30-31-110-1500 | 1.5 | 110 | 30 | 31 | 3 | 4 × 580W |
| 4/6SSC30-52-220-2200-HV | 2.2 | 220 | 30 | 52 | 3 | 6 × 580W |
| 4/6SSC30-70-280-3000-HV | 3 | 280 | 30 | 70 | 3 | 7 × 580W |
| 4/6SSC52-32-220-2200-HV | 2.2 | 220 | 52 | 32 | 3 | 6 × 580W |
| 4/6SSC52-48-280-3000-HV | 3 | 280 | 52 | 48 | 3 | 7 × 580W |
PV quantities are catalog references using 580W modules. Final array design must meet the selected controller’s electrical limits. Flow and head must be checked together on the performance curve.
- Controller protection
- IP65
- Controller operating temperature
- -15 to +60°C
- Solar tracking
- MPPT
- Operating controls
- Automatic start/stop; sunlight-adaptive speed; manual speed adjustment
- Starting
- Soft start
- Displayed operating data
- Power, voltage, current and speed
- Preliminary PV sizing
- PV array power ≥1.3 × pump power; check controller limits and site conditions.
- PV string voltage
- Cold-condition string Voc must remain below controller maximum voltage; operating string Vmp must meet its MPPT range.
- Deep well head estimate
- Catalog preliminary estimate: H1 + H2 + 0.1 × horizontal distance. Final selection must include pipe and fitting losses.
- Catalog reference
- Selected DC models shown. Full DC technical tables and curves: printed pages 01–11 in the download.
Product resources
DC Pump Catalog
8-page DC extract from the supplied catalog, including selection guidance, DC technical tables and performance curves. The original contents page also references other families.
Product FAQ
Your questions, answered.
Pump selection, solar sizing and daily water supply.
How do I select the right DC solar pump?+
Start with daily water demand and required flow, then calculate total dynamic head from the lowest operating water level to the tank, including pipe and fitting losses. Check well diameter and match the duty point to a pump curve.
Are maximum flow and maximum head achieved together?+
No. They are separate limits on the pump curve. The delivered flow decreases as head increases. Use the curve to check the required flow at the actual total head.
Does every model use 48V?+
No. DC voltage is model-specific. The selected DC families include 24V, 48V, 72V, 110V and higher-voltage variants up to 280V. Always match pump, controller and PV array.
How many solar panels are needed?+
The catalog recommends PV power of at least 1.3 times pump power. The model table gives reference quantities using 580W modules. Final series/parallel wiring must also satisfy controller voltage and current limits and site temperature conditions.
Can it pump continuously at night?+
A solar-only configuration depends on available sunlight. A water tank can store daytime production for later use. Any electrical storage or alternative supply must be designed for the selected controller; it is not assumed to be included.
Does this page cover AC/DC pump models?+
This page focuses on the DC deep well families. The download extracts the DC section from the supplied catalog; A/D dual-supply models are outside this page.
Product inquiry
Select a Pump for Your Water Supply
Tell us well diameter, lowest water level, tank height, pipe length, daily water demand and installation location.
