N-Type TOPCon Cells
Passivated contact cell technology supports a published module efficiency of up to 24.48% for the 530W model.

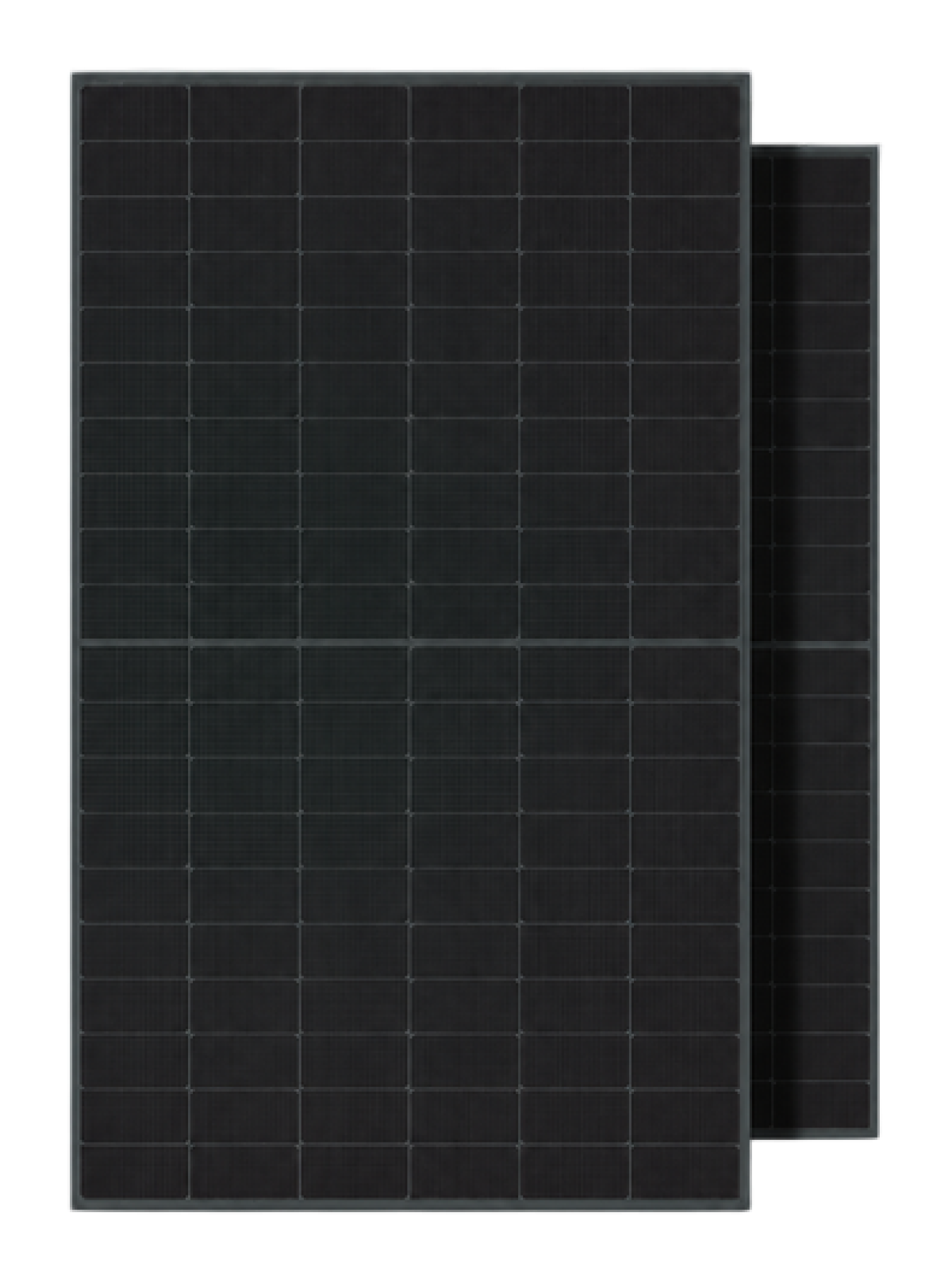

530W All-Black TOPCon Solar Module
BSM530M10-60HNH
High-efficiency all-black bifacial solar module for residential and commercial rooftops, combining N-type TOPCon technology with a dual-glass design and uniform dark appearance.
530 WRated power24.48%EfficiencyN-type TOPConCell technology
Module overview
Built for High-Efficiency Rooftop Solar
The Bluesun 530W all-black TOPCon solar module is designed for residential and commercial rooftop projects where high module power, visual consistency and dependable outdoor operation are important.
For system design, evaluate the module together with inverter limits, string configuration, mounting structure, roof conditions and project-specific certification requirements.
All-Black Bifacial Design
The dark module appearance is paired with dual-glass bifacial construction and an 80% ±5% published backside output ratio under STC.
Rooftop-Ready Format
The 1909 × 1134 mm module format supports residential and commercial roof layouts when checked against structural, mounting and electrical requirements.
Applications
Designed Around Rooftop Solar Projects
The 530W all-black TOPCon solar module supports residential and commercial installations where roof layout, visual appearance and system compatibility are important considerations.
Residential Rooftops
A high-efficiency all-black module option for homes where available roof area, appearance, module dimensions and system compatibility need to be carefully evaluated.
Explore Residential Solutions
Commercial Rooftops
Suitable for factories, warehouses and other commercial roofs when module layout, structural conditions, string design and electrical requirements match the project.
Explore C&I SolutionsTechnical data
530W Solar Module Specifications
Review the published electrical characteristics of the Bluesun BSM530M10-60HNH solar module under STC and NMOT conditions.
| Parameter | STC | NMOT |
|---|---|---|
| Maximum power (Pmax) | 530 W | 401 W |
| Operating voltage (Vmp) | 36.95 V | 34.97 V |
| Operating current (Imp) | 14.38 A | 11.46 A |
| Open-circuit voltage (Voc) | 44.38 V | 42.26 V |
| Short-circuit current (Isc) | 15.12 A | 12.15 A |
| Module efficiency | 24.48% | — |
All electrical values shown on this page must match the latest published Bluesun datasheet.
Installation data
Dimensions and Operating Limits
Review the module dimensions, weight, construction and published operating limits before system design and installation.
Use the original datasheet for mounting-hole locations, electrical ratings and project engineering details.
1909 mm1134 mm
30 mm frame depth · 25.5 kg
Mechanical
- Cell type
- N-type TOPCon
- Cell arrangement
- 120 (6 × 20)
- Dimensions
- 1909 × 1134 × 30 mm
- Weight
- 25.5 kg
- Front glass
- 2.0 mm high-transmittance AR coated glass
- Rear glass
- 2.0 mm semi-tempered glass
- Frame
- Anodized aluminium alloy
- Junction box
- IP68
Operating conditions
- Maximum system voltage
- DC 1500 V (IEC)
- Operating temperature
- −40°C to +85°C
- Maximum series fuse
- 30 A
- Static load
- Snow 5400 Pa / wind 2400 Pa
- Temperature coefficient, Pmax
- −0.29%/°C
- Temperature coefficient, Voc
- −0.26%/°C
- Temperature coefficient, Isc
- +0.045%/°C
- Nominal module operating temperature
- 45 ±2°C
- Backside output ratio
- 80% ±5%
Product resources
530W All-Black TOPCon Solar Module Datasheet
Download the published datasheet for the BSM530M10-60HNH N-type TOPCon solar module, including electrical characteristics, mechanical data and operating conditions.
Product FAQ
530W All-Black TOPCon Solar Module FAQs
Product-level answers based on the published documentation.
What is N-type TOPCon technology?
N-type TOPCon uses passivated contact cell technology designed to support high conversion efficiency and dependable energy generation. Review the published datasheet for the exact electrical characteristics of this model.
What does all-black mean for this solar module?
The module uses a dark cell and frame appearance for a clean, uniform rooftop look. The supplied product image shows the published all-black module design.
Can this 530W solar module be used for residential projects?
Yes. The module can be considered for residential rooftops where its dimensions, electrical characteristics, mounting requirements and local approvals suit the system design.
Is this a bifacial solar module?
Yes. The published datasheet specifies an 80% ±5% backside output ratio under STC. Actual rear-side contribution depends on mounting, reflectivity and site conditions.
What are the module dimensions and weight?
The module measures 1909 × 1134 × 30 mm and has a published weight of 25.5 kg.
How do STC and NMOT power ratings differ?
STC values are measured under standardized laboratory test conditions, while NMOT values represent module performance under more representative operating conditions.
What certifications are available for this solar module?
Available certifications depend on the exact model and target market. Contact Bluesun Product Support for current certification documents.
