Back-Contact Cell Architecture
HPBC 2.0 places electrical contacts on the rear side of the solar cell, supporting a clean front surface and effective light-receiving area.

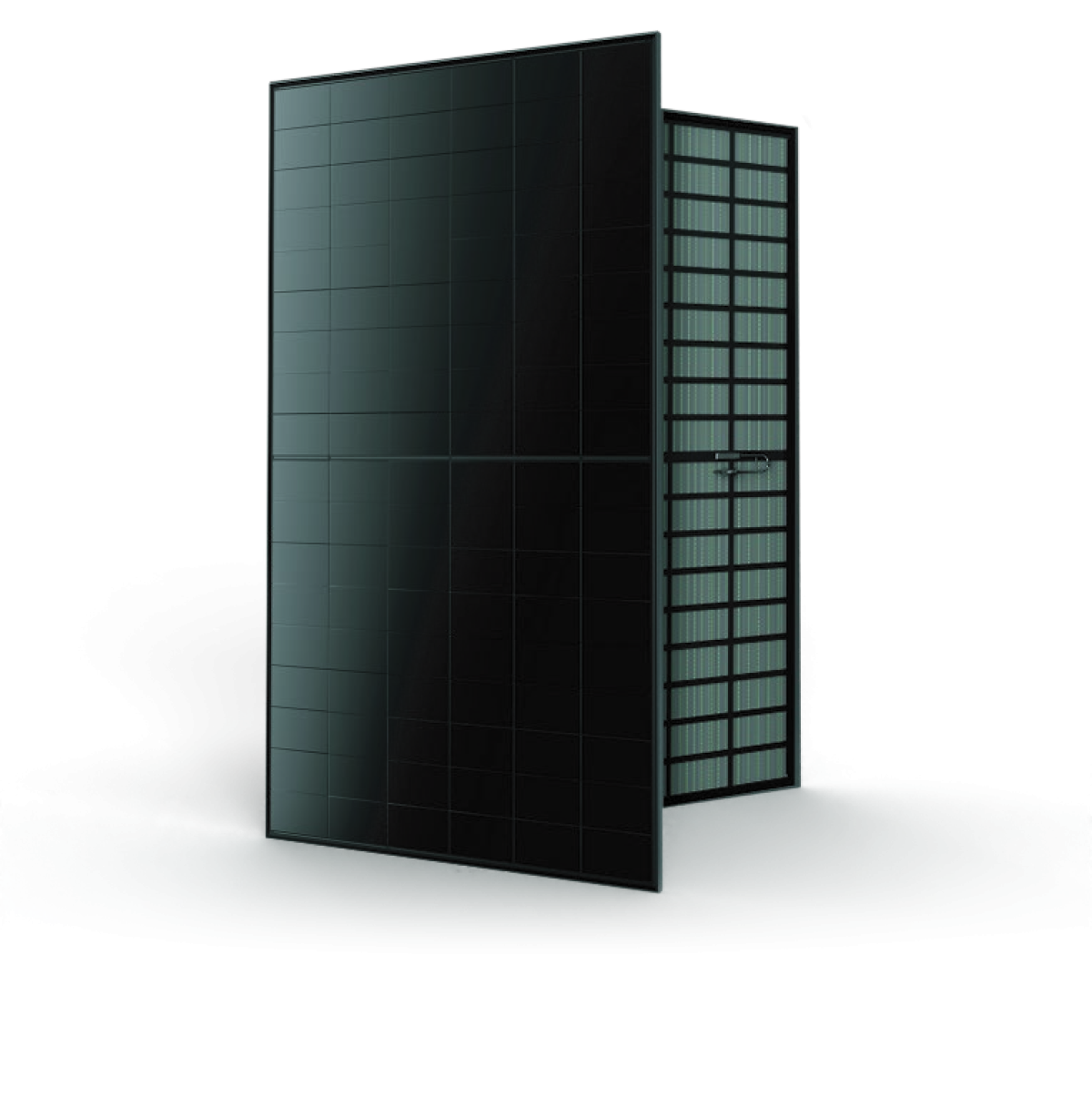

480W HPBC Solar Module
BSM480M10-54HJB
High-efficiency bifacial HPBC solar module for residential and commercial PV projects, combining HPBC 2.0 back-contact cell technology with a clean front appearance and compact module format.
480 WRated power23.5%EfficiencyHPBC 2.0Cell technology
Module overview
Built for High-Efficiency Rooftop Solar
The Bluesun 480W HPBC solar module is designed for residential and commercial rooftop projects where efficiency, module format and clean front appearance are important.
For system design, evaluate the module together with inverter limits, string configuration, mounting structure, roof conditions and project-specific certification requirements.
Bifacial Dual-Glass Design
Front and rear glass construction supports bifacial operation, with the published datasheet specifying a 70% ±5% backside output ratio under STC.
Rooftop-Oriented Format
The 1800 × 1134 mm module format is suited to residential and commercial roof layouts when checked against structural, mounting and electrical requirements.
Applications
Designed Around Rooftop Solar Projects
The 480W HPBC solar module supports residential and commercial installations where roof layout, system compatibility and module efficiency are important considerations.

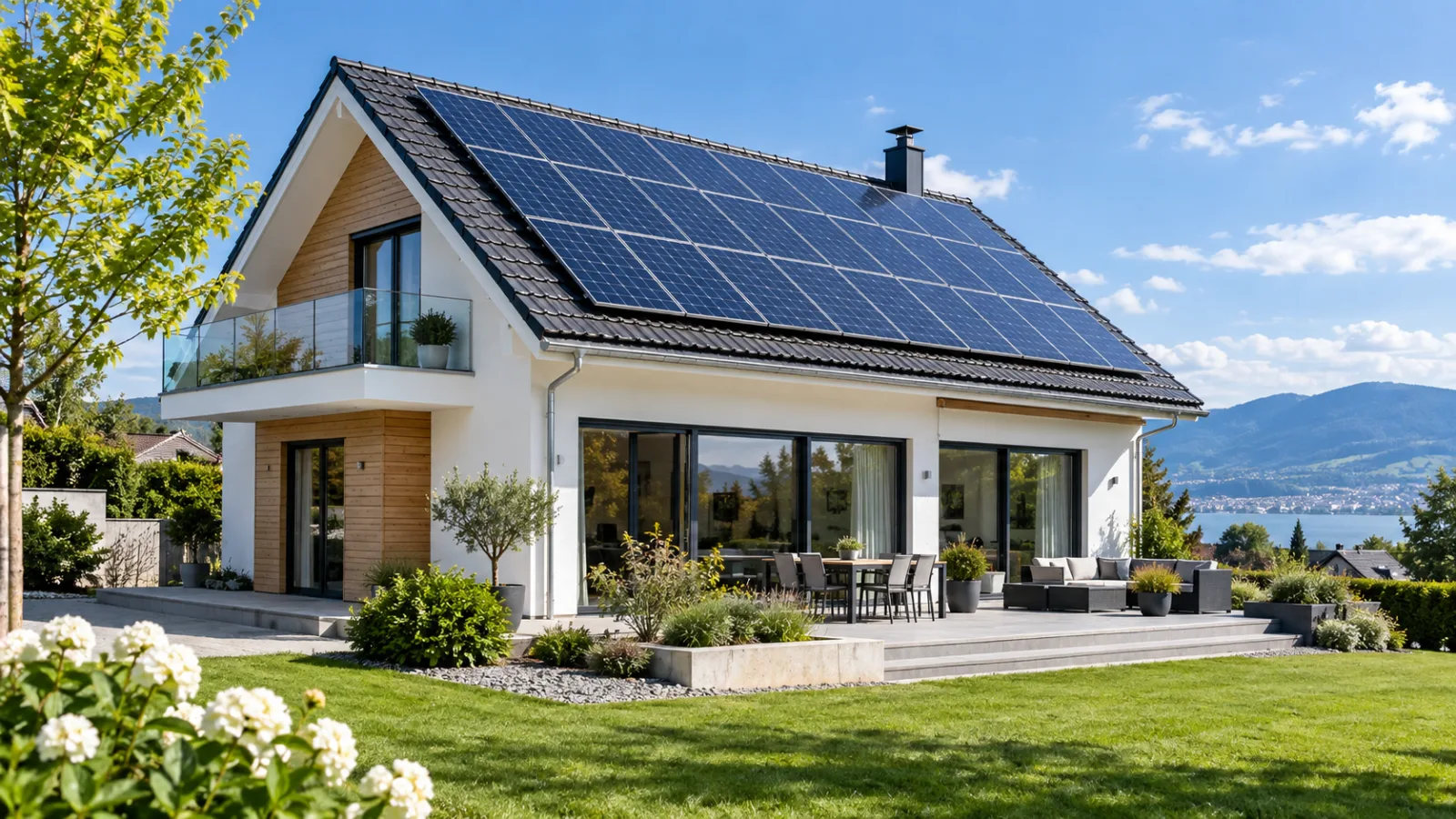

Residential Rooftops
A high-efficiency module option for home solar systems where available roof area, module dimensions and system compatibility need to be carefully evaluated.
Explore Residential Solutions
Commercial Rooftops
Suitable for factories, warehouses and other commercial roofs when module layout, structural conditions, string design and electrical requirements match the project.
Explore C&I SolutionsTechnical data
480W Solar Module Specifications
Review the published electrical characteristics of the Bluesun BSM480M10-54HJB solar module under STC and NMOT conditions.
| Parameter | STC | NMOT |
|---|---|---|
| Maximum power (Pmax) | 480 W | 365 W |
| Operating voltage (Vmp) | 33.51 V | 31.82 V |
| Operating current (Imp) | 14.33 A | 11.48 A |
| Open-circuit voltage (Voc) | 40.53 V | 38.50 V |
| Short-circuit current (Isc) | 14.98 A | 12.02 A |
| Module efficiency | 23.5% | — |
All electrical values shown on this page must match the latest published Bluesun datasheet.
Installation data
Dimensions and Operating Limits
Review the module dimensions, weight, construction and published operating limits before system design and installation.
Use the original datasheet for mounting-hole locations, electrical ratings and project engineering details.
1800 mm1134 mm
30 mm frame depth · 23.5 kg
Mechanical
- Cell type
- HPBC 2.0
- Cell arrangement
- 108 (6 × 18)
- Dimensions
- 1800 × 1134 × 30 mm
- Weight
- 23.5 kg
- Front glass
- 2.0 mm coated semi-tempered glass
- Back glass
- 2.0 mm semi-tempered glass
- Frame
- Anodized aluminium alloy
- Junction box
- IP68
Operating conditions
- Maximum system voltage
- DC 1500 V (IEC)
- Operating temperature
- −40°C to +85°C
- Maximum series fuse
- 30 A
- Static load
- Snow 5400 Pa / wind 2400 Pa
- Temperature coefficient, Pmax
- −0.260%/°C
- Temperature coefficient, Voc
- −0.200%/°C
- Temperature coefficient, Isc
- +0.050%/°C
- Nominal module operating temperature
- 45 ±2°C
- Backside output ratio
- 70% ±5%
Product resources
480W HPBC Solar Module Datasheet
Download the published datasheet for the BSM480M10-54HJB HPBC solar module, including electrical characteristics, mechanical data and operating conditions.
Product FAQ
480W HPBC Solar Module FAQs
Product-level answers based on the published documentation.
What is HPBC 2.0 technology?
HPBC is a back-contact solar cell architecture that places electrical contacts on the rear side of the cell. The HPBC 2.0 designation refers to the technology platform used in this Bluesun module. For detailed technical characteristics, refer to the published product datasheet.
Can this 480W HPBC solar module be used for residential projects?
Yes. The 480W HPBC module can be considered for residential rooftop projects where its dimensions, electrical characteristics, mounting requirements and local approvals suit the system design.
Is the 480W HPBC module suitable for commercial rooftops?
Yes. It can be evaluated for commercial rooftop systems when roof layout, structural conditions, string design and electrical requirements match the project.
What are the module dimensions and weight?
The module dimensions and weight are listed in the mechanical specifications section and in the latest official Bluesun product datasheet.
How do STC and NMOT power ratings differ?
STC values are measured under standardized laboratory test conditions, while NMOT values represent module performance under more representative operating conditions. Refer to the published electrical table for the exact values of this model.
What certifications are available for this solar module?
Available certifications depend on the exact model and target market. Contact Bluesun Product Support or review the latest technical documentation for currently available certification documents.
Does Bluesun provide complete solar systems using this module?
Yes. Bluesun provides solar modules, inverters, energy storage products and complete solar and energy storage systems for commercial, industrial and utility-scale projects.
