Solar + Storage
4.55kWp PV paired with 5.3248kWh battery storage.
4.2kW / 5.32kWh Off-Grid Solar System
BSE-4.2KW-5.32KWh
Solar generation and LiFePO4 battery storage for reliable residential power, with 220/230V output and Wi-Fi monitoring.
4.2kWRated output5.32kWhBattery capacity220/230VAC voltage
System overview
A Compact Solar + Storage Package for Homes

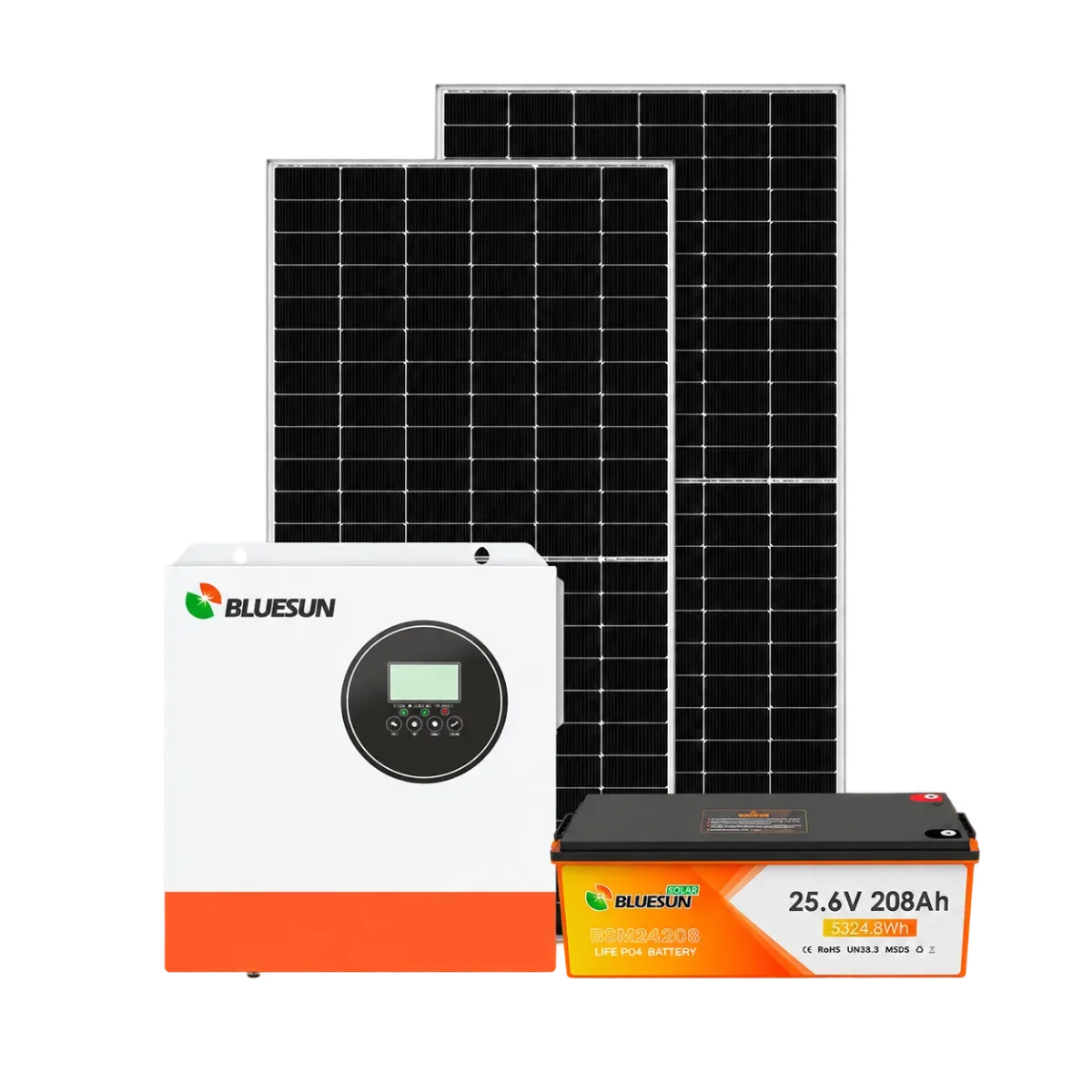

The BSE-4.2KW-5.32KWh combines seven 650W solar modules, a 4.2kW off-grid inverter and one BSM24208 LiFePO4 battery.
The standard package includes PV cabling, connectors, mounting structures and Wi-Fi monitoring. The source topology also shows optional grid or generator support through ATS switching.
Residential Power
4.2kW rated output at 220/230V, 50/60Hz.
LiFePO4 Battery
25.6V 208Ah BSM24208 battery.
Remote Monitoring
One Wi-Fi module included.
System configuration
What’s Included in the System
Core hardware and supporting components in the standard off-grid package.
PV Modules
BSM650G12-60HNH7 × 650W · 4.55kWp
Off-Grid Inverter
BSM-4200LV-241 × 4.2kWView Product Details →
LiFePO4 Battery
BSM242081 × 25.6V 208AhPV Mounting
Mounting structures for seven modules
DC Cabling & Connectors
100m PV cable · 3 pairs of MC4 connectors
Remote Monitoring
1 Wi-Fi module included
View Full Configuration +
- PV Modules · 7
- BSM650G12-60HNH · 650W; 7 modules in one string
- Inverter · 1
- BSM-4200LV-24 · 4200W
- Battery · 1
- BSM24208 · 25.6V 208Ah / 5324.8Wh
- Connectors · 3 pairs
- MC4
- PV Cable · 100m
- PV1-F 1 × 4mm²
- Monitoring · 1
- Wi-Fi module
- PV Mounting · 1 set
- Mounting structures for 7 modules

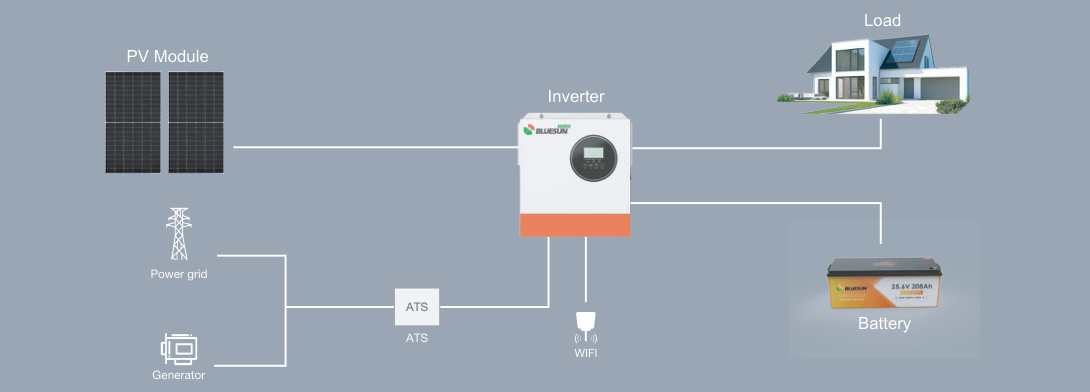

System architecture
How the Off-Grid System Connects
PV and the battery connect to the inverter to supply residential loads. Wi-Fi enables remote monitoring.
Original proposal topology. Grid or generator connections through ATS are shown conceptually; final supply scope follows the project configuration.
Technical specifications
BSE-4.2KW-5.32KWh Specifications
Review system, inverter and battery specifications.
- Model
- BSE-4.2KW-5.32KWh
- Rated AC output
- 4200W
- Battery capacity
- 5324.8Wh / 5.3248kWh
- Standard PV array
- 4550Wp · 7 × 650W
- PV configuration
- 7 modules per string · 1 string
- AC voltage
- 220/230V
- Frequency
- 50/60Hz
- Monitoring
- Wi-Fi module included

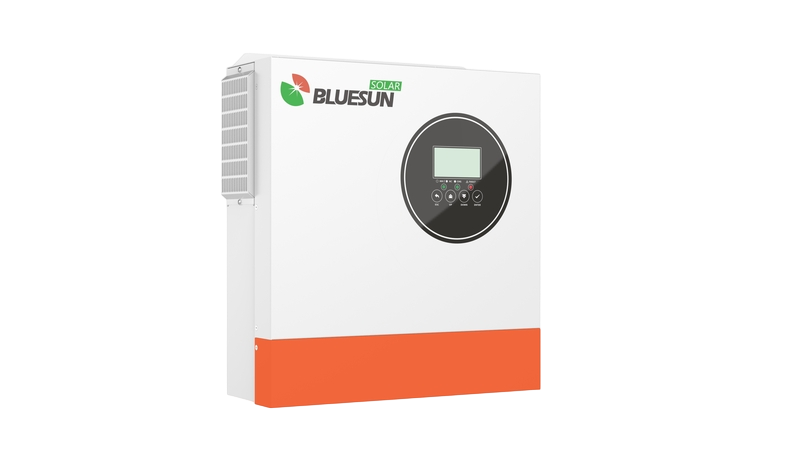

- Model
- BSM-4200LV-24
- Rated power
- 4200W
- Nominal AC voltage
- 220/230VAC
- Frequency
- 50/60Hz
- Peak efficiency (PV to inverter)
- >94%
- Maximum PV array open-circuit voltage
- 500VDC
- MPPT voltage range
- 60–500VDC
- Maximum solar input current
- 27A
- Maximum charge current
- 120A
- Dimensions (D × W × H)
- 371.8 × 342 × 116.5mm
- Weight
- 7.9kg

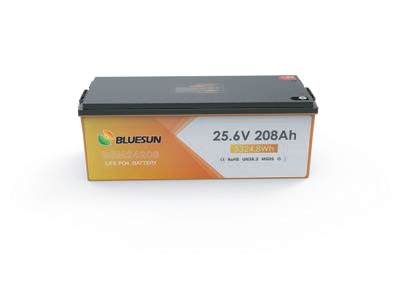

- Model
- BSM24208
- Chemistry
- LiFePO4 (LFP)
- Nominal voltage
- 25.6V
- Nominal capacity
- 208Ah / 5324.8Wh
- Voltage range
- 20–29.2V
- Maximum charge / discharge current
- 200A
- Communication
- Not specified
- Dimensions (D × W × H)
- 635 × 244 × 220.5mm
- Weight
- 35.4kg
- Design life
- 5 years+
- Cycle life
- >6,000 at 0.5C, 25°C and 80% DOD
- Operating humidity
- 0–95%, non-condensing
- Maximum operating altitude
- 2,000m
- Charge temperature
- 0–50°C
- Discharge temperature
- −10–50°C
- Storage temperature
- −20–60°C
Product resources
Technical Documents
Download the two-page 4.2kW off-grid proposal with configuration, topology and technical specifications.
Product FAQ
Your questions, answered.
Key details from the 4.2kW off-grid standard proposal.
What is included in the package?+
Seven 650W PV modules, one 4.2kW inverter, one BSM24208 battery, three pairs of MC4 connectors, 100m of PV cable, one Wi-Fi module and mounting structures for seven modules.
How much solar power is included?+
The standard array is 4550Wp (4.55kWp), configured as seven modules in one string.
What is the AC output voltage?+
The inverter is rated at 4200W, 220/230VAC and 50/60Hz.
What is the battery capacity?+
One 25.6V 208Ah LiFePO4 battery provides 5324.8Wh, displayed as 5.32kWh.
Is remote monitoring included?+
Yes. The standard configuration includes one Wi-Fi monitoring module.
Can it use generator backup?+
The proposal topology shows grid or generator input through ATS switching. Confirm the ATS and generator supply scope for the installation.
What is the battery cycle life?+
The proposal specifies more than 6,000 cycles at 0.5C, 25°C and 80% depth of discharge. The listed 5-year-plus design life is not a warranty statement.
Product inquiry
Plan Your Off-Grid Solar System
Tell us your site location, load profile, PV area and backup needs. Our team will help evaluate the right configuration.
4.2kW / 5.32kWh Off-Grid Solar Energy System
Model: BSE-4.2KW-5.32KWh Category: Solar Power System
