Integrated Transformer
Transformer-equipped architecture with 400V three-phase AC output.

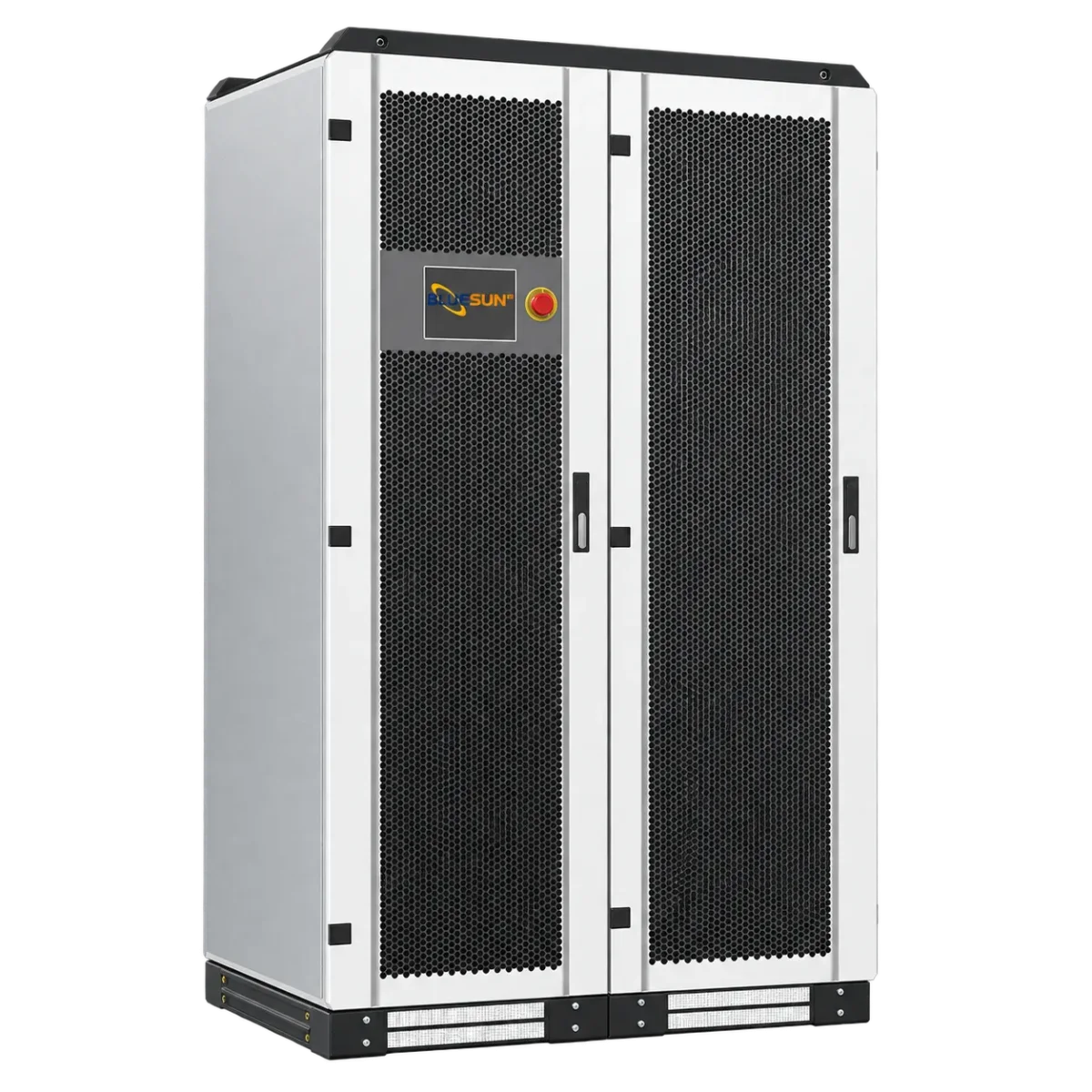

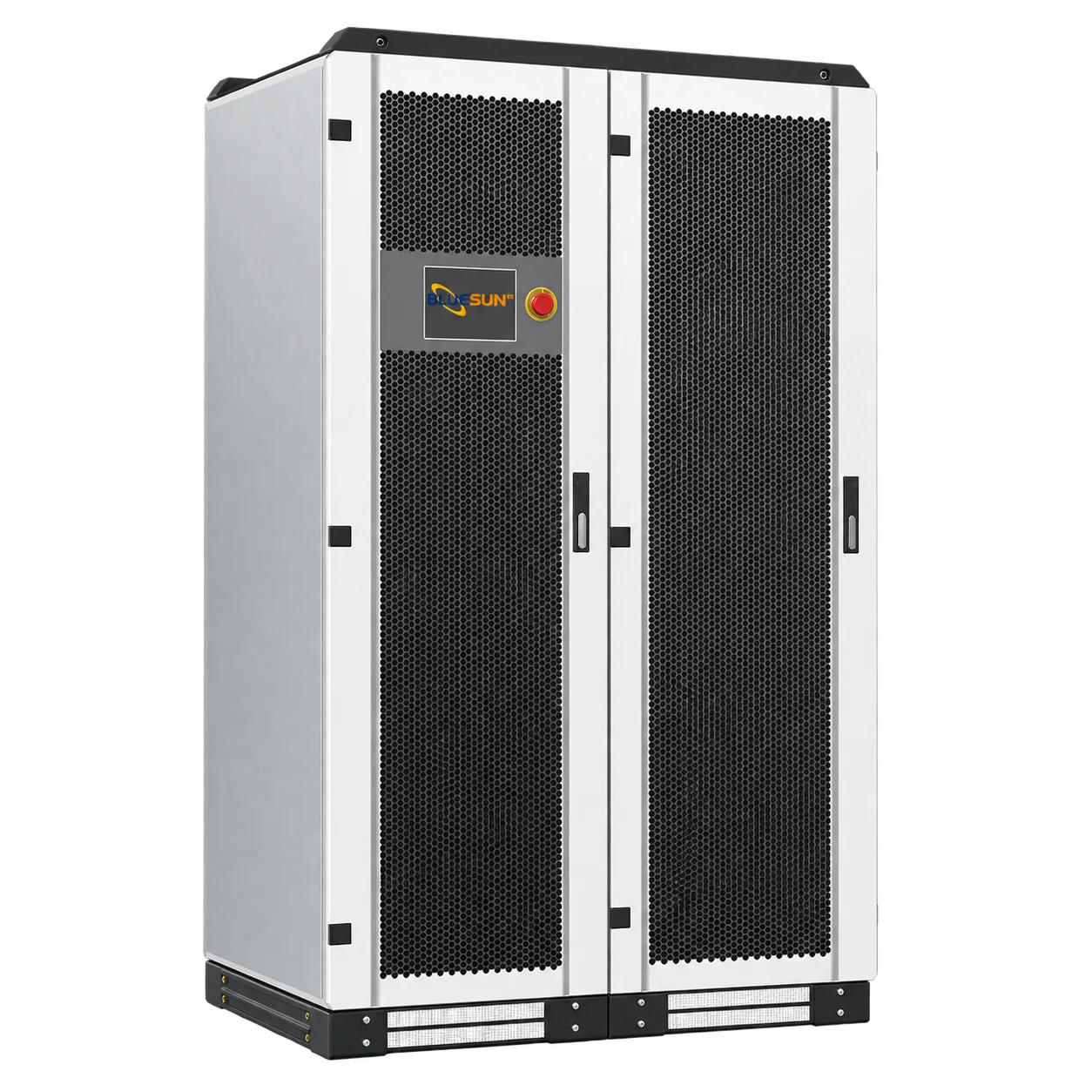

150 / 250 / 500kW Energy Storage Hybrid Inverter
BMPS150/250/500
EU-standard three-phase energy storage hybrid inverter series with an integrated transformer, 400V AC output and flexible PV, battery, grid and generator integration.
150 / 250 / 500kWRated output400VThree-phase ACIntegratedTransformer
Inverter overview
Integrated Power Conversion for Large Solar & Storage Projects
EU-standard three-phase energy storage hybrid inverter series with an integrated transformer, 400V AC output and flexible PV, battery, grid and generator integration.
The BMPS series integrates EMS functions and supports lithium-ion or lead-acid batteries. Configurable PV controllers and operating modes help match solar generation, storage and backup supply to the project.
Flexible PV Configuration
PV power and MPPT options differ by model; select the controller configuration for the project.
EMS & Generator Integration
Integrated energy management and support for PV, battery, utility grid and diesel generator connections.
Grid & Off-Grid Operation
Supports on-grid and off-grid modes, with 110% overload for 10 minutes and 120% for 1 minute.
System integration
Integrated PV, Battery, Grid and Generator Architecture
Select the inverter rating, PV controller configuration and battery voltage for the project.
Large-Scale Solar & Storage Integration
BMPS150/250/500PV, batteries, utility grid, diesel generator and loads in one coordinated power system.AC Connection
400V · 3W+N+PE
Battery Type
Li-ion / lead-acid
Communication
RS485 / CAN · Modbus
View Inverter Scope +
- Hybrid inverter · Model selection
- BMPS150 / BMPS250 / BMPS500
- PV controller · Configuration-dependent
- PV power and MPPT count follow the selected model and controller option.
- Battery · External
- Compatible Li-ion or lead-acid battery within model voltage limits.
- AC installation · Project-specific
- Utility grid, loads, generator, wiring and protection according to the installation design.
Technical specifications
Technical Specifications
Values are presented in BMPS150 / BMPS250 / BMPS500 order where applicable.
- Model order
- BMPS150 / BMPS250 / BMPS500
- Rated power (grid / off-grid)
- 150 / 250 / 500kW
- Apparent power (grid / off-grid)
- 165 / 275 / 550kVA
- Rated grid current
- 217 / 361 / 722A
- Rated off-grid current
- 217 / 361 / 720A
- PV power options
- 120/180/240kW · 300/360kW · 600/660/720kW
- MPPT options
- 2/3/4 · 5/6 · 10/11/12
- Battery voltage range
- 420–850V / 420–850V / 500–850V
- Battery full-load voltage range
- 420–850V / 420–850V / 500–850V
- Dimensions (W × D × H)
- 1200×800×2050 / 1800×800×2050 / 2800×800×2050mm
- Weight
- 1250 / 1980 / 3265kg
- Rated voltage (grid / off-grid)
- 400V
- Grid voltage range
- 320–460V
- Rated frequency
- 50 / 60Hz
- Grid frequency range
- 45–55 / 55–65Hz
- Grid THDi
- <3%
- Power factor (as listed)
- 1 lagging to 1 leading
- AC connection
- 3W+N+PE
- Transformer
- Yes
- Off-grid THDu (linear load)
- ≤2%
- Overload capability
- 110% for 10 minutes; 120% for 1 minute
- Maximum PV open-circuit voltage
- 1000VDC
- PV MPPT voltage range
- 250–850V
- BMPS150 PV power / MPPT options
- 120 / 180 / 240kW; 2 / 3 / 4 MPPT
- BMPS250 PV power / MPPT options
- 300 / 360kW; 5 / 6 MPPT
- BMPS500 PV power / MPPT options
- 600 / 660 / 720kW; 10 / 11 / 12 MPPT
- Supported battery types
- Lithium-ion / lead-acid
- BMPS150 / BMPS250 battery voltage
- 420–850V
- BMPS500 battery voltage
- 500–850V
- Operating temperature
- -25 to +55°C
- Relative humidity
- 0–95%, non-condensing
- Protection degree
- IP20
- Noise emission
- 70dB(A) at 1m
- Maximum altitude
- 5000m; derating above 3000m
- Cooling
- Forced-air
- Display
- Touch-screen LCD
- Communication interfaces
- RS485 / CAN
- Communication protocol
- Modbus
- Energy management
- Integrated EMS
Product resources
Inverter Datasheet
Original full-series catalog covering BMPS30/50/100/150/250/500. This page focuses on the 150 / 250 / 500kW models.
Product FAQ
Your questions, answered.
Battery compatibility, solar input and backup operation.
Which models are included on this page?+
This page compares BMPS150, BMPS250 and BMPS500, rated at 150kW, 250kW and 500kW. The downloadable original catalog also includes 30kW, 50kW and 100kW models.
What battery voltage does each model support?+
BMPS150 and BMPS250 support 420–850V. BMPS500 supports 500–850V. These are also the full-load operating ranges stated in the datasheet.
Is the PV configuration fixed?+
No. The catalog lists PV power and MPPT options by model: 120/180/240kW with 2/3/4 MPPT for BMPS150; 300/360kW with 5/6 MPPT for BMPS250; and 600/660/720kW with 10/11/12 MPPT for BMPS500.
Does it have an integrated transformer?+
Yes. All three models list an integrated transformer, 400V AC output and 3W+N+PE AC connection.
Can it be installed outdoors without protection?+
The stated enclosure protection is IP20. Use an appropriately protected installation environment and follow the applicable manufacturer installation requirements.
