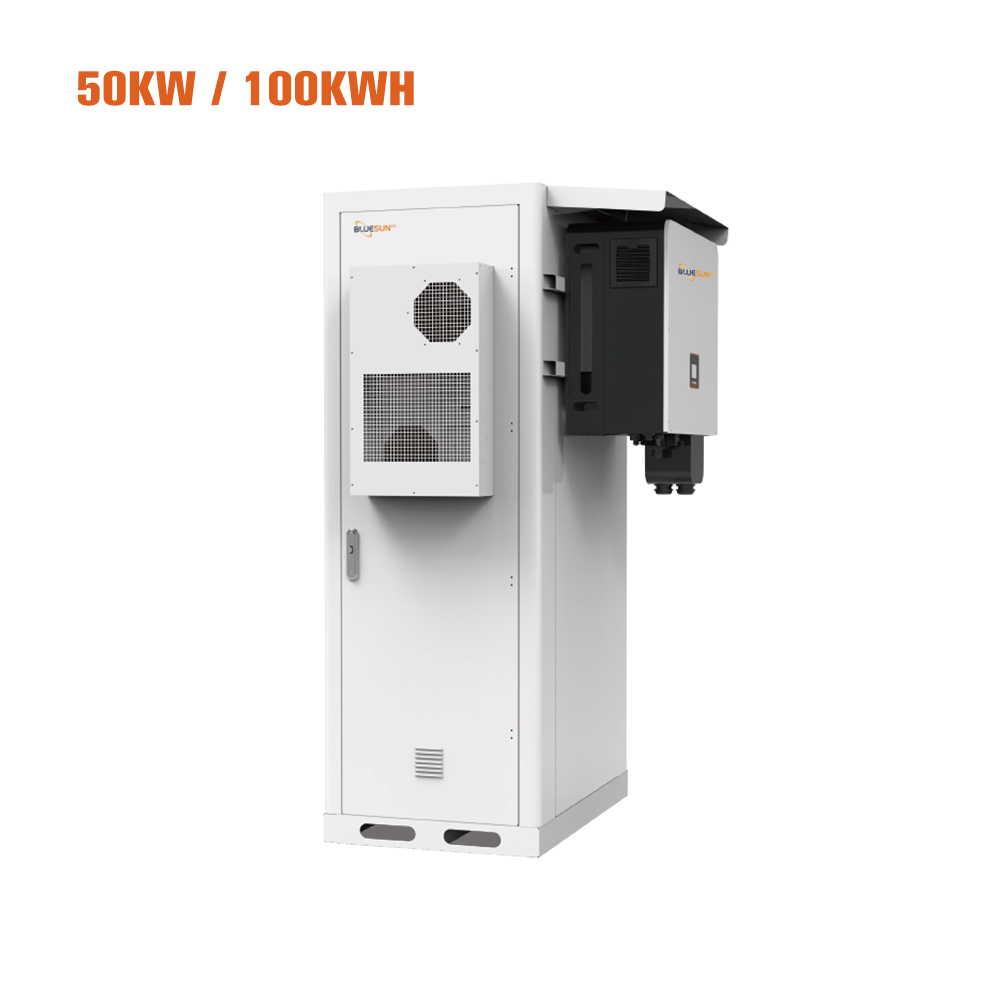

Bluesun 30KW 50kw Industrial Energy Storage System 50kw On Off Grid Solar System with 100.3kwh Lithium Battery

50KW SYSTEM CONFIGURATION

Product name

Specification model

Unit

Quantity

Photovoltaic module

BSM565M10-72HPH

block

96

Dc combiner box

6 input and 6 output

piece

1

Hybrid inverter

BSE50KH3

piece

1

Lithium battery

51.2V 106Ah(including BMU/ Collecting harness/power cable)

pack

7

control box

piece

1

Battery Rack

set

1

Battery-inverter cable

piece

2

Remote monitoring

WiFi

set

1

MC4 connector

The type of a one-to-one correspondence

pair

24

Photovoltaic cable

PV1-F 1*4mm²

meter

600

Support

Support for 96 photovoltaic modules

set

1

For More Details, Please Send Your Inquiry To Bluesun Team.Thank You!

Model

BSE50KH3-100.3KWH

SYSTEM PARAMETER

Rated output power

50KW

System capacity

100.3KWH

Battery type

LIFEPO4

Class of protection

IP32/IP56(outdoor)

Quality guarantee

5 years

INVERTER TECHNICAL PARAMETERS

Model number

BSE50KH3

Maximum photovoltaic input power

75KW

Maximum photovoltaic input current

36*3A

Maximum photovoltaic input voltage

1000V

Number of MPPT/number of strings per route

3/6

MPPT voltage range

180-900V

Maximum photovoltaic short circuit current

42A*3

Maximum charge and discharge current

100A

Maximum charge and discharge power

50kw

Rated grid frequency

50/60Hz

Rated output voltage

380/400V,3L/N/PE

Phase number

3

Backup power supply

50KW

Communication mode

Wi-Fi/GPRS/4G

Starting voltage

220V

Humidness

0-100%

Dimensions (HxWxD)

800*350*875 mm

Weight

102kg

BATTERY TECHNICAL PARAMETERS

Battery module model

51.2V 280AH

Module capacity

14.3KWH

Available capacity

12.8KWH

Discharge depth

0.9

Rated voltage

358.4V

Maximum charge and discharge current

140A

Operating temperature range

0~55/-10~55(outdoor)

Cycle number

>6000
